Driya Led Ecologically Inspired

Products Details

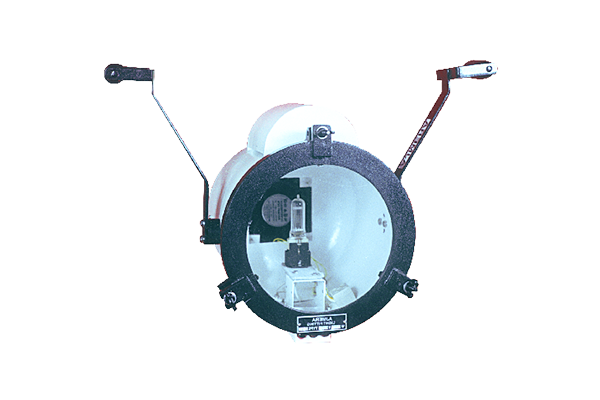

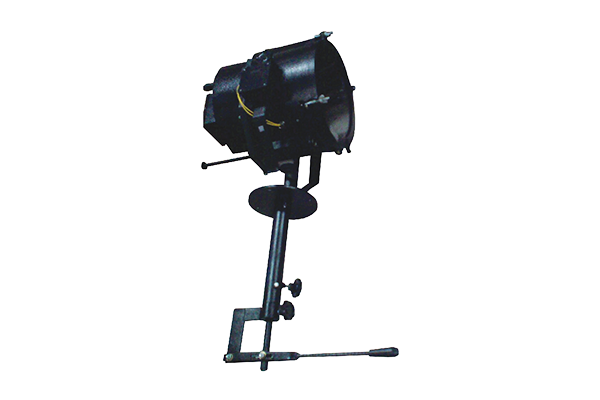

2571 Security Search Light suitable upto 1000W Halogen lamp, Brass body with hot air escape provision and MS wheel house assembly for Horizontal & Vertical movements. Powder coated finishing, mirror polshed glass reflector with front Aluminium ring and toughened glass fitting with exhaust fan
2572 ----do---- sutable up to 300W. Halogen Lamp
2573 ----do---- suitable up to 2000W. Halogen Lamp
1571 Security Search Light suitable upto 1000W Halogen lamp. Aluminium body with MS wheel house assembly for Horizontal & Vertical movements. Powder coated finishing, mirror glass reflector with front Aluminium ring and toughened glass fitting
1572 ---do--- suitable up to 300W, Halogen Lamp
1573 ---do--- suitable up to 2000W, Halogen Lamp

Catalogue No. 2571/1571 2572/1572 2573/1573
Sourcing Lamp Halogen Halogen Halogen
Lamp Watt 1000W 150 - 300W 2000W
Lamp Voltage 240V 24V 240V
Housing Material Brass / Aluminium Brass / Aluminium Brass / Aluminium
Reflector Mirror Polish Glass Reflector & SS Reflector on Fornt Ring Mirror Polish Glass Reflector & SS Reflector on Fornt Ring Mirror Polish Glass Reflector & SS Reflector on Fornt Ring
Colour Black or White Black or White Black or White
Range (Approx) 600 to 800 mtrs 150 to 300 mtrs 800 to 1200 mtrs
Craddle MS MS MS
Clamp MS MS MS
Under Platform arrangement MS MS MS
A (Approx) 450mm or On Request 370mm or On Request 450mm or On Request
B (Approx) 375mm 310mm 425mm
C (Approx) 350mm 230mm 390mm
D (Approx) 280 115 310
E (Approx) 385mm 255mm 410mm
Hinged Front Ring Aluminium Aluminium Aluminium
Round Disc MS MS MS
Vertical Movement Manual Manual Manual
Weight (Approx) 19 kg (Brass) / 15.5 kg (Aluminium) 13.5 kg (Brass) / 11.5 kg (Aluminium) 22 kg (Brass) / 20 kg (Aluminium)
Note: Receptacles are also available with Canopy (if required) - Receptacles are also available with suitable MCB / MCCB / ELCB / Fuses as per client requirement & specifications
