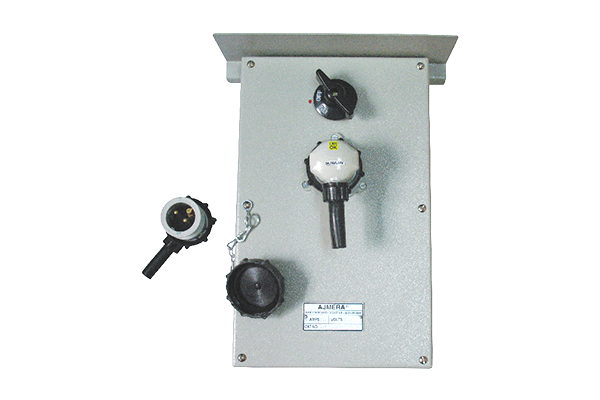

Fully Interlocked Receptacle Units

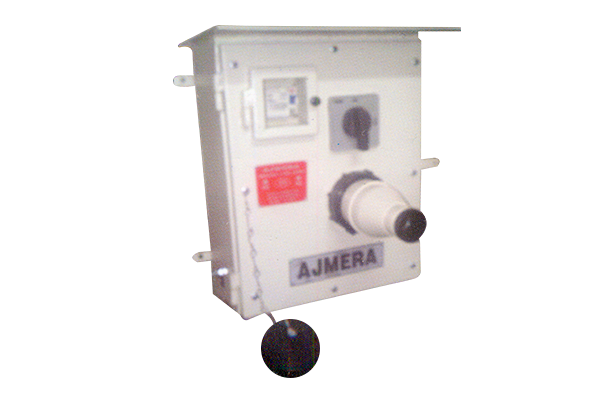

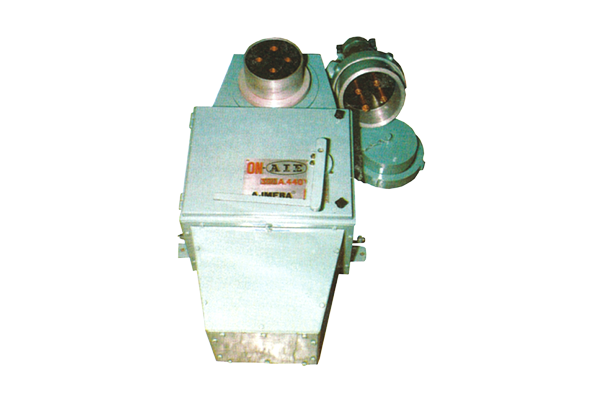

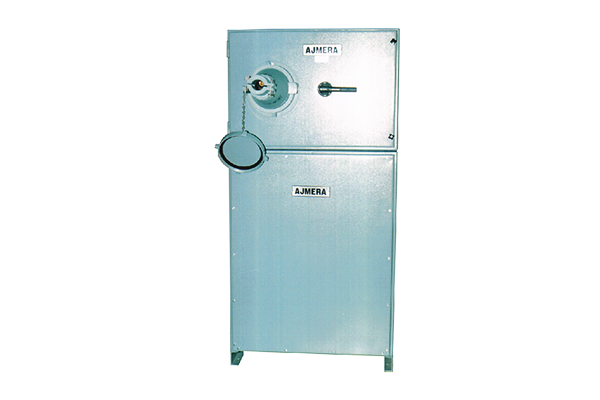

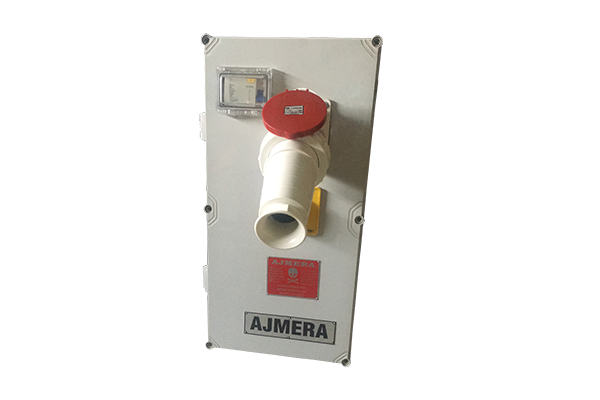

Fully Interlocked Receptacles with Switch Socket Units and plug. Suitable for indoor as well as outdoor use and can be wall mounted. The switch can be put to the "ON" position only when the plug is fully engaged. Plug cannot be withdrawn until the switch is in "OFF" position. The cover can only be opened when the switch is in "OFF" position. All units come with internal wiring and terminals. Units are available in Aluminium / CRCA / Thermoplastic / FRP and S.S body as per the requirements of the customer.

2138

Products Details

Sr. No	Catalogue No.	Rating		No. of Ph	No. of Pins + Earthing
Sr. No	Catalogue No.	Amp	Voltage	No. of Ph	No. of Pins + Earthing
01	2131	10	250	1Ø	2 + 1
02	2131 / TR	10	24	1Ø	2 + 1

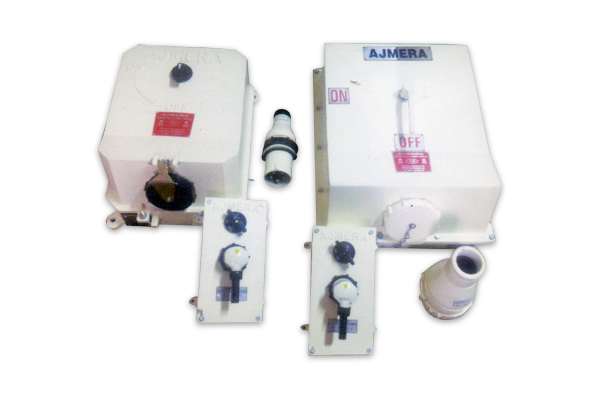

03	2132	20	250	1Ø	2 + 1
04	2133	20	440	3Ø	3 + 1
05	2134 / A	30	250	3Ø	2 + 1
06	2134	30	415	3Ø	3 + 1
07	2134/B	30	415	3Ø	4 + 1
08	2135	63	415	3Ø	4 + 1
09	2136	125	415	3Ø	4 + 1
10	2137	200	415	3Ø	3 + 1
11	2138	300	415	3Ø	3 + 1

Features

Ajmera make Plug & Socket only
Aluminium / CRCA / FRP / Thermoplastic or SS Housing, manufactured as per the customer’s requirement.
Switch can be set to "ON" only when plug is fully engaged.
Plug can be withdrawn only when switch is in "OFF" position.
Cover can be opened, only when switch is in "OFF" position.

Terminal blocks for cable terminations are available for loop in & loop out.
Industrial type units for indoor & outdoor use. (Weather proof & water tight units available for outdoor use and it comes with a degree of protection in line with IP65).
Applications where power output is taken in various loads, like Power Plant Projects, Heavily Functioning Industries, Refineries, Port Trusts, Mines, and many more.
All units are available with Internal Wiring

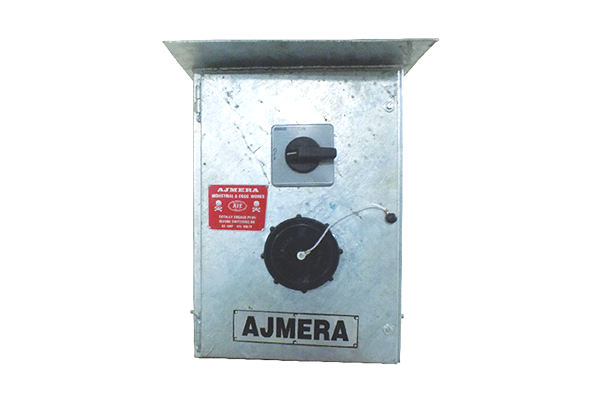

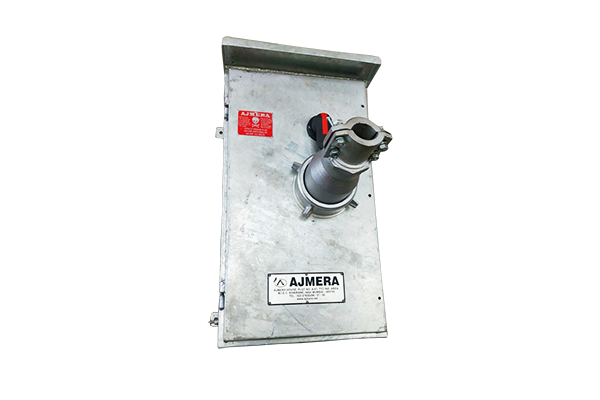

Note1: Receptacles are also available with Canopy (if required) - Receptacles are also available with suitable MCB / MCCB / ELCB / Fuses as per client requirement & specifications

Note: Receptacles are avilable up to 800A. 440V. 3 ph. as per client requirements and specifications .
