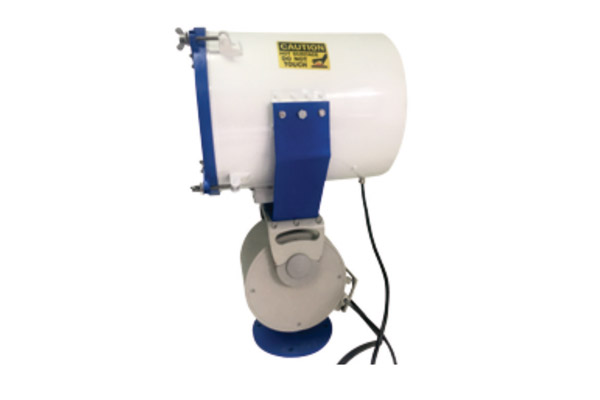

Remote Operated Security Search Light

Products Details

Remote Operated Security Search Lights suitable for LED and Halogen lamps.

Aluminium body Light Fitting for better heat circulation.

Polished heavy duty long range glass reflector with front openable aluminium ring and clear heat resistant toughened glass for halogen lamp fitting.

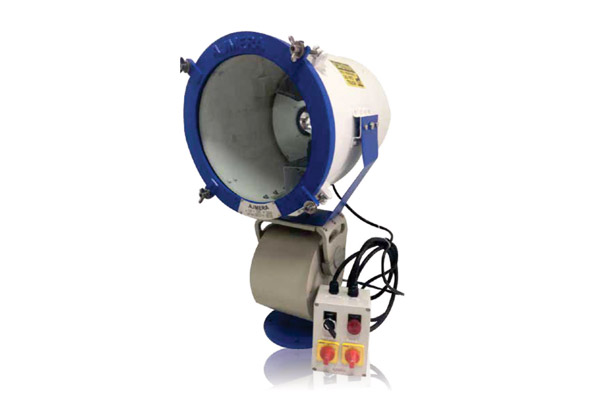

Fitting suitable for Horizontal and Vertical movement with the help of a wired remote control.

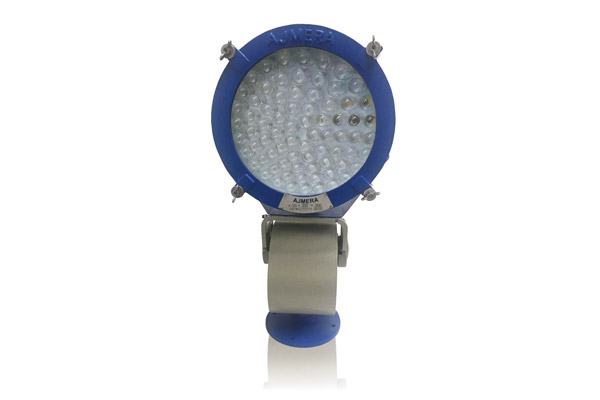

Heavy-duty high-power LED with long range lenses with front openable aluminium ring and clear heat resistant toughened glass for LED fitting.

Catalogue No.	1103	1103/LE	1203	1203/LE
Search Light	Remote Operated	Remote Operated	Remote Operated	Remote Operated
Sourcing lamp	Halogen	LED	Halogen	LED
Lamp Watt	1000 W	200 W	2000 W	300 W
Lamp Voltage	240 V	240 V	240 V	240 V
Search Light Enclosure	Aluminum Sheet	Aluminum Sheet	Aluminum Sheet	Aluminum Sheet
Relector	Mirror Polished Glass	Lenses	Mirror Polished Glass	Lenses
Range (Approx)	600 - 800 Mts	600 - 800 Mts	800 - 1200 Mts	800 - 1200 Mts
Control Box Enclosure	Die Cast Aluminum	Die Cast Aluminum	Die Cast Aluminum	Die Cast Aluminum
Remote Enclosure	ABS	ABS	ABS	ABS
Forward/Reverse Movement	Yes	Yes	Yes	Yes
Vertical Movement	Yes	Yes	Yes	Yes
Indicator Power	Yes	Yes	Yes	Yes
Wire from Remote to Search Light	Based on user Requirements	Based on user Requirements	Based on user Requirements	Based on user Requirements
Connector Type	Junction Box	Junction Box	Junction Box	Junction Box
Housing Material	Aluminium	Aluminium	Aluminium	Aluminium
Weight (App)	23 Kgs.	26 Kgs.	25 Kgs.	28 Kgs.

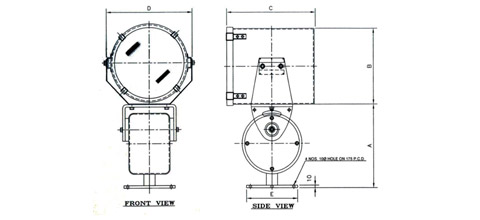

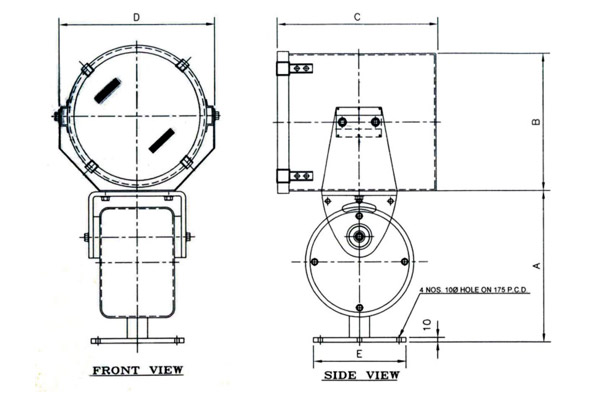

CAT No.	A	B	C	D	E	Weight (Approx)
1103 1000 W	330	330	350	345	205	23 Kgs.
1103/LE 200 W	330	330	350	345	205	26 Kgs.
1203 2000 W	330	380	350	395	205	25 Kgs.
1203/LE 300 W	330	380	350	395	205	28 Kgs.

Note:

We also manufacture Search Lights in Brass and S.S. body.
Dual reflectors for better focus.
The Remote Operated search light rotates 340 degrees horizontally and 90 degrees vertically.
Search lights are weather proof and in line of lP55, hence making them suitable for outdoor use.
